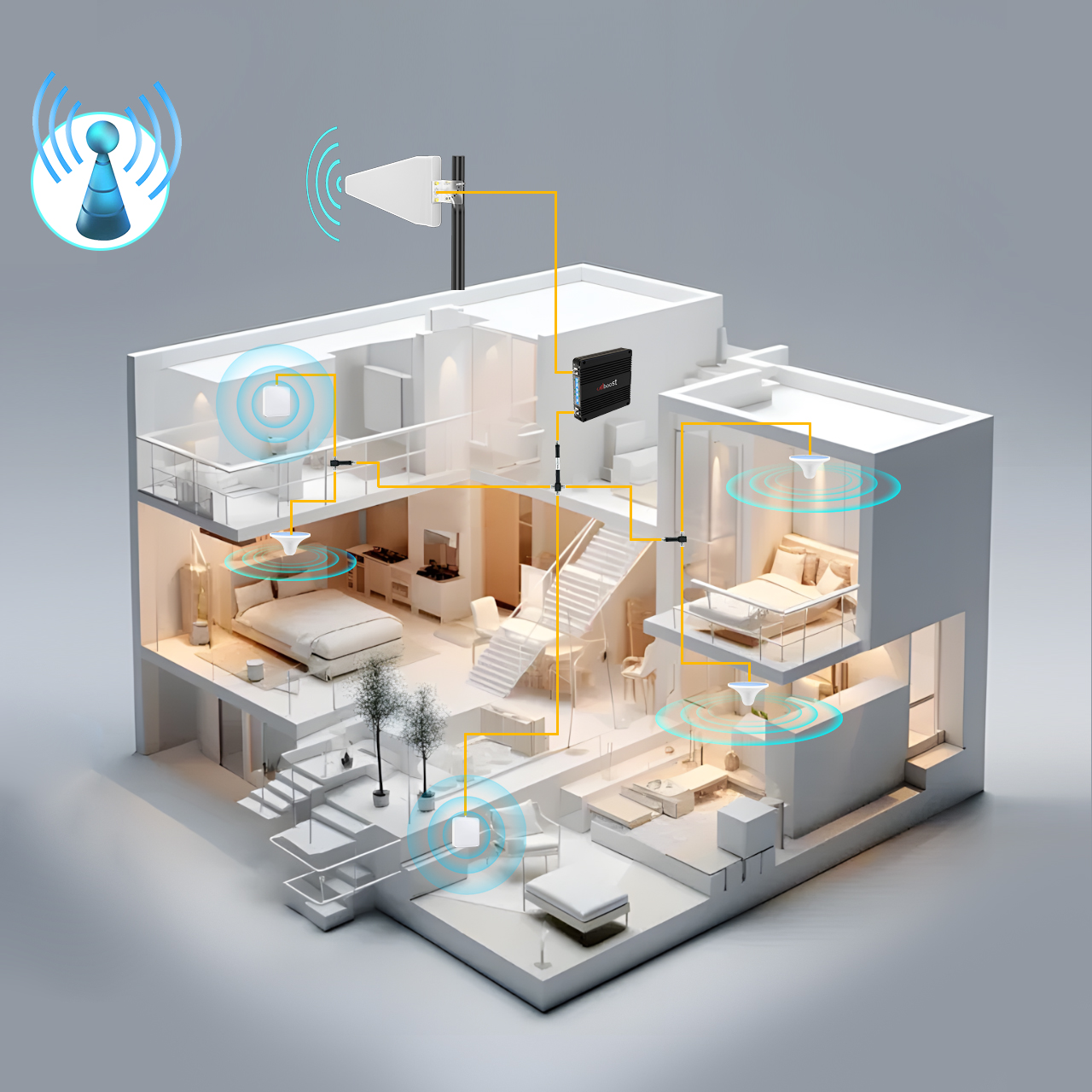

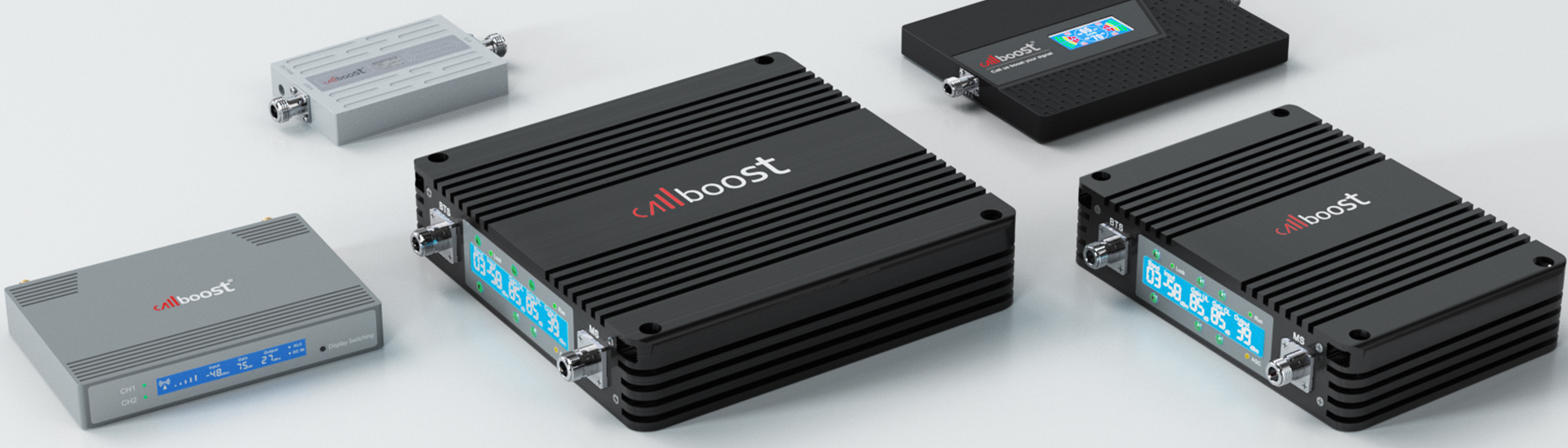

Mobile signal amplifier is an electronic device used to enhance radio signals, mainly to compensate for the insufficient coverage of mobile communication networks in certain areas. It captures weak external signals, amplifies them to a stronger level, and then retransmits them to the user's phone or other wireless device, enabling communication over longer distances or deeper penetration. Mobile signal amplifier is particularly useful for users living in underground facilities or large buildings in remote mountainous areas, rural areas, and densely populated urban areas, as mobile cell signal booster can effectively enhance signal strength and ensure smooth voice calls and data transmission.
Mobile signal amplifier help you more in life.
1.Improve signal coverage: In remote or complex terrain areas where the signal may have been weak or completely missing, amplifiers help fill
these blind spots.
2.Enhance signal quality: Even in areas with slight signals, signal quality may decrease due to obstacles blocking, and amplifiers can significantly improve signal clarity.
3.Improve data rate: A stronger signal means a faster data transmission speed, which is crucial for high-speed Internet access.
4.Safety considerations: In emergency situations, reliable signal connections may be the lifeline, especially in areas prone to natural disasters, where amplifiers ensure communication at critical moments.
What are the roles of AGC and ALC in mobile signal amplifiers ?
AGC (Automatic Gain Control)
Function: AGC can dynamically adjust the gain level of the signal amplifier to ensure that the input signal remains stable and does not overload, regardless of its strength.
Function: In a constantly changing signal environment, AGC acts as a "gatekeeper" to prevent distortion caused by signal mutations, protect mobile cell signal booster from strong signal impacts, and improve the acceptability of weak signals.
ALC (Automatic Level Control)
Function: ALC is responsible for monitoring the average level of signals, adjusting signal strength, and maintaining the amplified signal output within the ideal range to avoid prolonged high or low levels.
Function: By equalizing signal levels, ALC ensures that multiple signals remain clear and balanced even after mixing, preventing certain signals from masking others due to excessive amplification and ensuring consistency and quality in multi-channel transmission.
The synergistic effect of AGC and ALC
Joint control: The combination of AGC and ALC achieves comprehensive management of signal strength, which can quickly respond to instantaneous changes and maintain long-term stability, providing users with a seamless communication experience.
Importance: AGC and ALC are essential technical components in mobile signal amplifiers, ensuring reliability and efficiency during the signal amplification process, and are key elements for achieving high-quality communication.
Let's talk about more details of AGC and ALC
Automatic Gain Control (AGC) is a key technology widely used in the field of electronic communication, aimed at maintaining the stability of the output signal of the receiving circuit. Automatic Gain Control core purpose is to enable the mobile cell signal amplifier to adapt to constantly changing input signal strength, ensuring that the output signal always remains within the ideal amplitude range and is not affected by input signal fluctuations. In short, the job of AGC is to ensure that the signal amplifier is sensitive enough to weak signals and not overloaded when facing strong signals, thereby avoiding signal distortion.
Working principle of AGC
The operation of AGC is based on a feedback loop mechanism:
1.Signal detection: Firstly, AGC monitors the strength of the input signal.
2.Evaluation and Comparison: Next, it compares the current signal strength with a preset ideal threshold.
3.Adjust gain: If the signal is too weak, AGC will increase the gain of the cellular cell signal booster; If the signal is too strong, it will reduce the gain to maintain the stability of the output signal.
4.Continuous monitoring and correction: This process cycles continuously to ensure that the mobile cell signal booster is always in optimal working condition, regardless of changes in the input signal.
Key role - handling unstable signals
The biggest advantage of AGC lies in its flexibility and dynamic adaptability. In the real world, signal strength is influenced by various factors, including weather conditions, geographical obstacles, and even interference from surrounding radio frequencies. AGC allows amplifiers to maintain good performance even under extreme conditions, avoiding saturation caused by strong signals and noise amplification caused by weak signals, thereby enabling end users to obtain a clear and consistent communication experience.
Application Example - Actual Effect
Example 1: Remote mountainous areas
In remote mountainous areas, signals are usually very weak. Without AGC, the amplifier may not be able to effectively amplify these signals. After introducing AGC, even the weakest signals can be captured and strengthened to a sufficient level for use, greatly improving the accessibility and reliability of communication.
Example 2: City Center
The signal towers in the city are dense, with multiple and chaotic signal sources. AGC can filter out unnecessary background noise and interference in such environments, focus on the main signal, prevent strong signals from suppressing weak signals, and ensure that every user can receive clear signals without being affected by other users.
Example 3: Mobile Communication
During vehicle operation, signals fluctuate unpredictably with changes in position. AGC automatically adjusts the sensitivity of the amplifier to ensure signal continuity and quality, whether entering tunnels or passing through tall buildings, ensuring the safe communication needs of drivers and passengers.
In summary, AGC, as the core component of signal amplifiers, plays an important role in stabilizing signal output and optimizing communication quality. It can demonstrate powerful performance in both stationary and mobile scenarios, bringing convenient and reliable communication experiences to countless users worldwide.
Automatic Level Control (ALC) aims to maintain consistency in signal output levels, regardless of changes in the number and characteristics of input signal sources. Its core goal is to ensure that the output signal level is within a predetermined range, avoiding quality degradation or information loss caused by signal strength fluctuations.
Basic operating principle
ALC continuously monitors the average power of the input signal. When it detects that it exceeds the preset threshold, it will adjust the gain of the amplifier accordingly to maintain the level stability of the output signal. This process involves measurement, comparison, and timely gain adjustment to achieve optimal signal balance.
Control Logic - Maintain Signal Level Stability
The operational logic of ALC is based on the following steps:
1.Level detection: ALC continuously detects the average power of the input signal.
2.Comparison and analysis: Compare the detected power with the pre-set standard level.
3.Adjust gain: If the signal level is found to be too high or too low, ALC will automatically reduce or increase the amplifier gain until the output signal returns to the normal range.
4.Continuous monitoring and fine-tuning: The ALC system continuously monitors and is ready to adjust again at any time to cope with natural fluctuations in signal strength.
Core Value - Role in Multiple Signal Sources
ALC becomes particularly important in situations where there are multiple signal sources. For example, in cellular networks, multiple base stations may simultaneously send signals to the same receiving point, resulting in significant fluctuations in voltage levels. ALC evenly distributes signal gain to prevent any signal source from dominating, ensuring that information from all signal sources is received accurately and without error, and avoiding interference and conflicts between signals.
Practical Case - Application Effectiveness in Complex Signal Environment
Example 1: Television Broadcasting
In digital television broadcasting systems, ALC helps balance the levels between different channels, ensuring that the weakest to strongest channels can be clearly received by home television receivers, providing a high-quality audiovisual experience.
Example 2: Satellite Communication
ALC plays a crucial role in the transmission of signals between Earth stations and space for communication that relies on satellite links. It adjusts signal strength, compensates for the effects caused by atmospheric changes and other space environmental factors, and ensures the stability and reliability of bidirectional communication.
Example 3: Audio Engineering
In professional audio production, ALC helps mixologists manage and balance multiple audio tracks, avoiding volume fluctuations that can damage audience hearing, while ensuring that every detail of the music piece is perfectly presented.
Through the above examples, it can be seen that ALC has demonstrated outstanding performance in various complex signal environments, not only enhancing signal quality but also improving user experience, proving its indispensable role in modern communication and media dissemination.
