In the field of modern communication, mobile signal repeaters play a crucial role. (4G)mobile signal repeater can effectively enhance the signal coverage range, ensuring the stability and reliability of communication. However, with the continuous advancement of technology and the increasing diversity of mobile signal repeater 's user needs, how to achieve efficient heat dissipation within a limited mobile signal repeater size has become one of the key challenges in the design of mobile signal repeaters. As a professional 2G 3G 4G mobile signal repeater manufacturer, Callboost has achieved significant success in solving this problem with its advanced technology and excellent craftsmanship.
The core function of a mobile signal repeater (repeater) is to improve communication quality by amplifying signals, but mobile signal repeater 's internal high-power RF modules, power circuits, and other components generate a large amount of heat during operation. If the heat dissipation design of 2G 3G 4G mobile signal repeater is insufficient or the heat dissipation system fails, the mobile phone signal repeater will face a series of chain reactions, ranging from performance degradation to complete damage.
Serious deterioration of mobile signal repeater performance
1. The signal quality of mobile signal repeater deteriorates
Increased Noise Factor (NF): High temperatures cause an increase in thermal noise from electronic components inside the amplifier, resulting in a decrease in Signal to Noise Ratio (SNR). Users may experience call noise, network lag, and even interruption.
Intermodulation distortion (IMD) exacerbates: When components overheat, the nonlinear characteristics of the power amplifier module are amplified, generating additional harmonic interference and affecting the purity of adjacent frequency band signals.
For example: After running in a high-temperature environment for 1 hour, the noise figure of a certain brand of repeater increased from 2dB to 5dB, resulting in a 10 fold increase in signal error rate (BER) and a cliff like decline in user experience.
2. Reduced coverage area
Gain attenuation: For every 10 ℃ increase in the temperature of the RF chip, the gain may decrease by 0.5~1dB, resulting in reduced signal amplification capability and shortened coverage radius.
Automatic frequency reduction protection: Some devices may trigger temperature control protection mechanisms, forcibly reducing output power (such as from 20dBm to 15dBm), further sacrificing coverage effect.
The risk of mobile signal repeater hardware damage has increased dramatically
1. Shortened lifespan of core components
Electrolytic capacitor bulging/bursting: High temperature accelerates electrolyte evaporation, causing a decrease in capacitor capacity or even short circuit, resulting in power module failure.
RF chip thermal fatigue: Long term high temperature operation can cause solder joint cracking, chip packaging material aging, and the mean time between failures (MTBF) may be reduced by more than 50%.
Data shows that experiments have shown that the lifespan of RF chips decreases by approximately 30% to 50% for every 10 ℃ increase in operating temperature beyond the rated value.
2. Circuit board burned out
PCB copper foil peeling: Continuous high temperature causes the substrate of the circuit board to expand and deform, resulting in wire breakage or short circuit, and the equipment to be completely paralyzed.
Inductance/transformer core failure: The core saturates at high temperatures, causing inductance value drift and power supply fluctuations or RF signal distortion.
Without good dissipation cell phone signal repeater will affect user experience and security risks
1. Communication service interruption
Frequent downtime: Overheating triggers device self-protection shutdown, requiring cooling before restarting, which may cause serious consequences in critical scenarios such as emergency communication and industrial monitoring.
Signal fluctuation: Temperature fluctuations cause unstable output power, and user devices (mobile phones) need to repeatedly switch base stations, exacerbating power consumption and network latency.
2. Fire risk
Plastic shell melting: If low-cost equipment uses low temperature resistant materials (such as ordinary ABS plastic), the shell may soften or even catch fire due to high temperatures.
Aging and short circuit of cables: High temperature accelerates the brittleness of the insulation layer of power lines, increasing the risk of leakage or short circuit.
Callboost good dissipation cell phone signal repeater - Ensuring stable performance with innovative heat dissipation technology
As a brand focused on high gain and high reliability communication signal repeater manufacturer, Callboost has built a multi-dimensional heat dissipation solution through material innovation, intelligent heat dissipation design, precision component selection, and strict quality control. Callboost as a signal repeater manufacturer breaks through the bottleneck of heat dissipation through core design, material technology, and strict selection of spare parts, providing users with good dissipation cell phone signal repeater and long-lasting and stable signal enhancement services.
The key factor for mobile signal repeater heat dissipation: the perfect combination of material and design

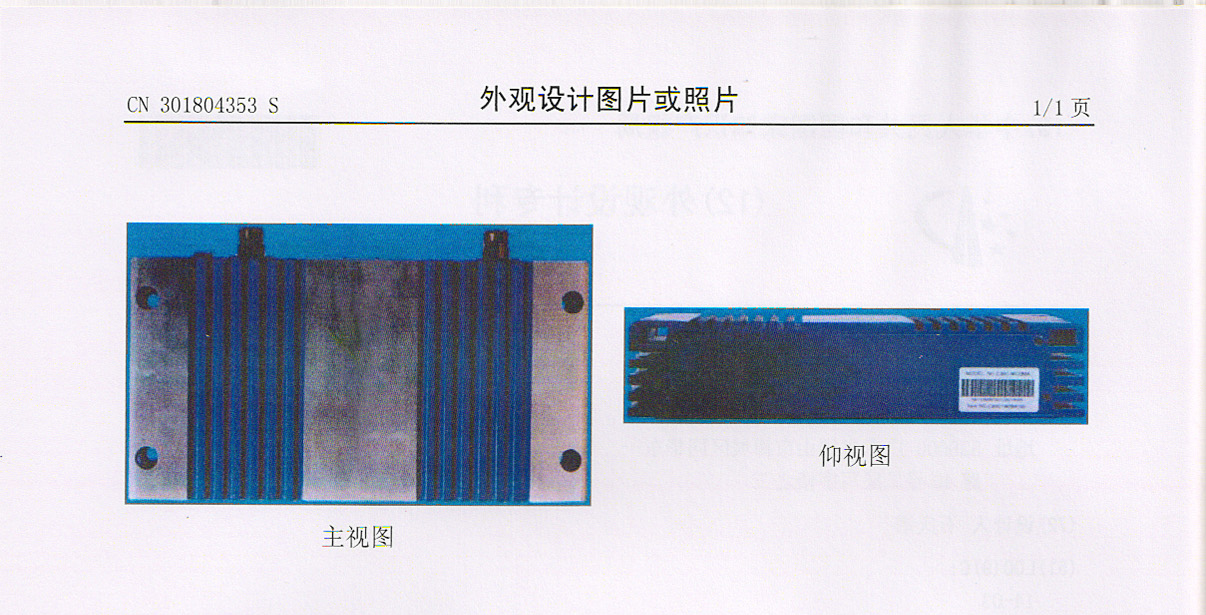

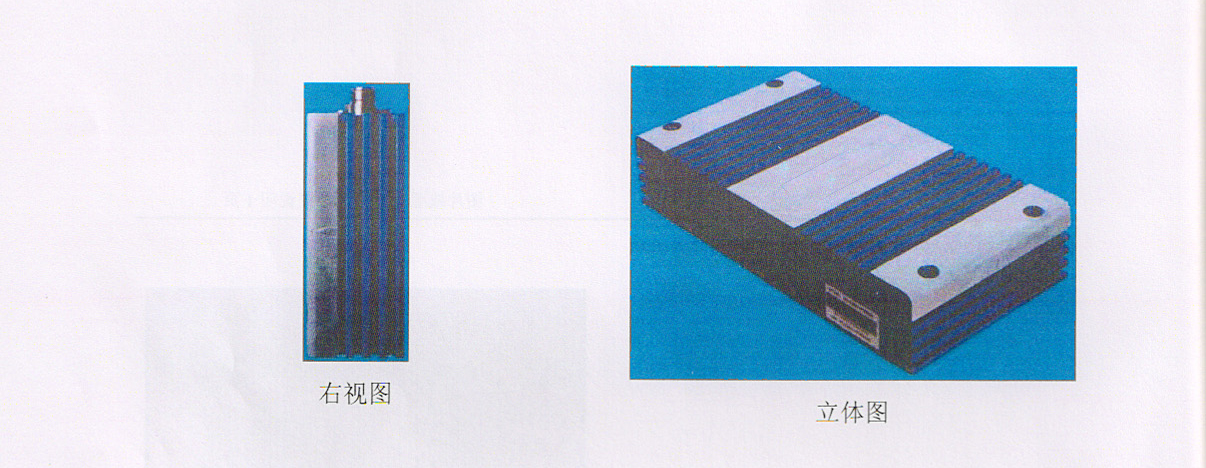

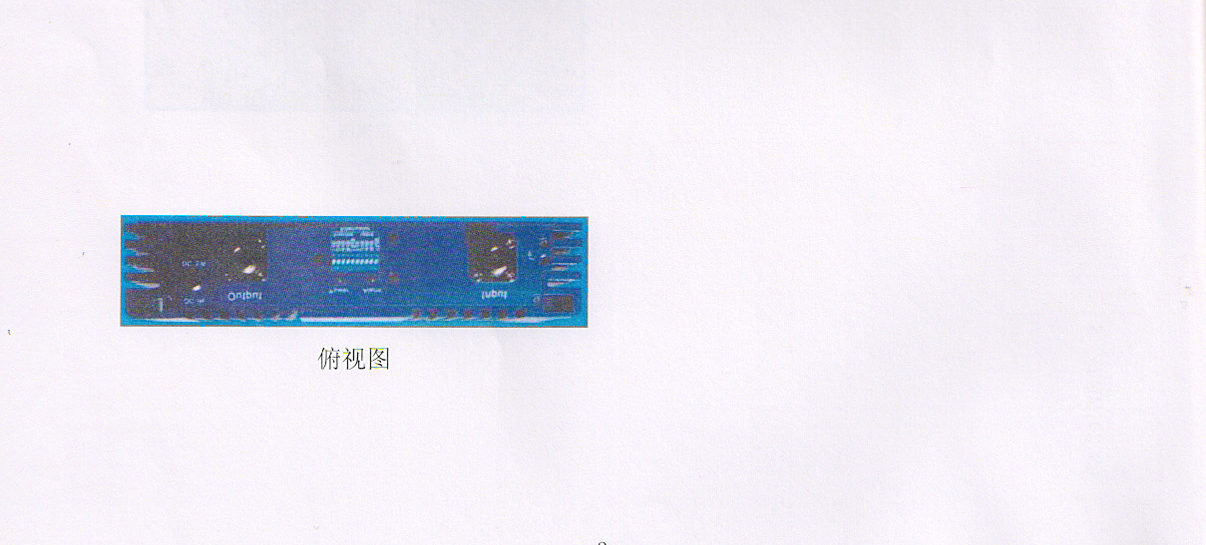

1. Patent aluminum cavity design: perfect balance between heat dissipation and shielding
The Callboost mobile network repeater adopts a self-developed patented aluminum cavity structure, which completely seals the PCB motherboard and RF circuit in the metal cavity. The high thermal conductivity of aluminum (thermal conductivity coefficient of about 237W/m · K) can quickly transfer internal heat to the shell, while the lightweight characteristics of aluminum alloy avoid excessive expansion of mobile signal repeater volume. This design not only improves heat dissipation efficiency, but also reduces electromagnetic interference (EMI) through metal shielding effect, ensuring the purity of signal transmission, whichmaking mobile signal repeater to be a type of good dissipation cell phone sginal repeater.
high-quality-aluminum-and-good-dissipation-cell-phone-signal-repeater-design

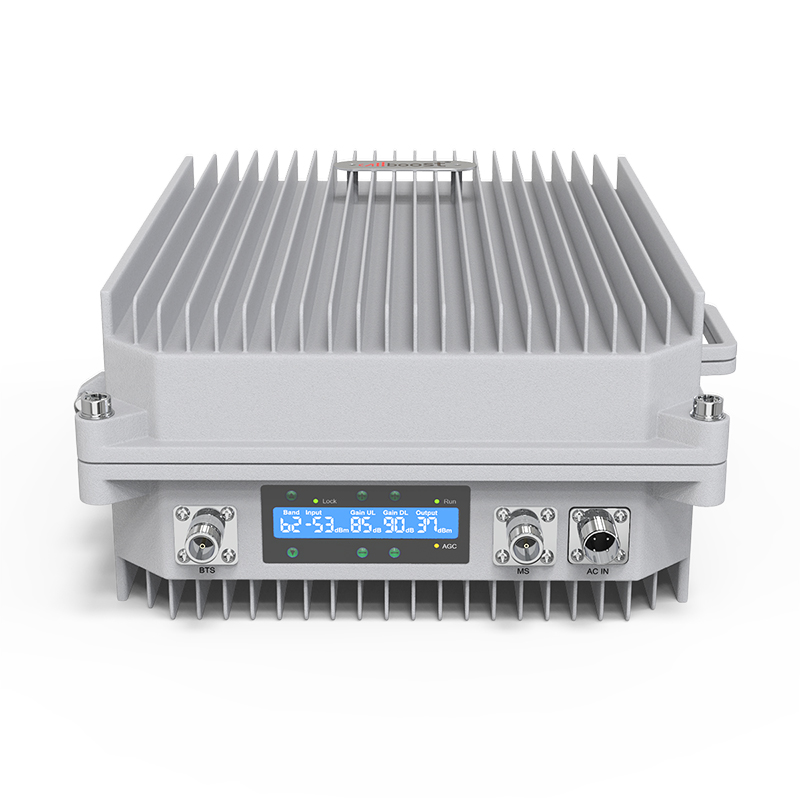

2. Callboost good dissipation cell phone signal repeater uses high-quality aluminum alloy as the shell material
The choice of casing material has a decisive impact on the heat dissipation performance in the design of mobile signal repeaters. Callboost uses high-quality aluminum alloy as the shell material of 2G 3G 4G 5G mobile signal repeater 's shell, which not only has good thermal conductivity and can quickly transfer the heat generated inside to the surface of the shell, but also has high mechanical strength and corrosion resistance, ensuring the stable operation of the mobile signal repeater in various environments. In addition, the aluminum alloy shell also has good electromagnetic shielding performance, effectively preventing external electromagnetic interference from affecting the internal circuits of the equipment, further improving the stability of signal transmission.
In order to further enhance the heat dissipation effect, Callboost has been optimized based on the aluminum alloy shell. By adding heat dissipation fins on the surface of the shell, the heat dissipation area is effectively increased, accelerating the dissipation of heat. At the same time, the reasonable arrangement of the shape and spacing of the fins ensures that air can flow smoothly through the heat dissipation fins, forming a good convective heat dissipation environment, thereby significantly improving the heat dissipation efficiency of the equipment.

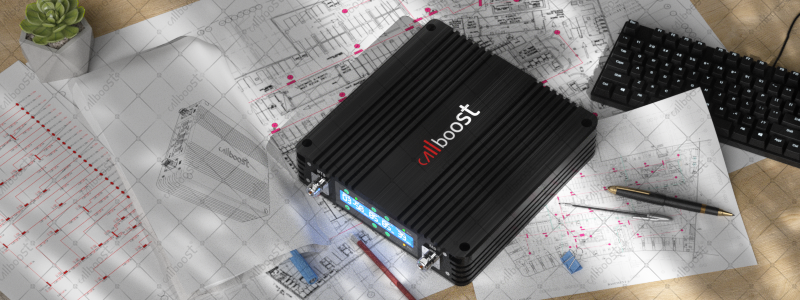

Callboost good dissipation cell phone signal repeater
3. Collaborative design of waterproofing and heat dissipation
For outdoor deployment requirements, the Callboost repeater housing adopts IP65 waterproof sealing technology, with silicone sealing rings embedded at the interface and ultrasonic welding to ensure airtightness. At the same time, the surface of the shell is designed with three-dimensional heat dissipation fins, which utilize air convection to enhance passive heat dissipation and solve the problem of traditional waterproof design hindering heat dissipation.
Callboost mobile network repeater internal electronic components: combination of intelligent temperature control and high-performance hardware
In addition to the choice of mobile signal repeater shell material, optimizing internal electronic components is also an important means for Callboost to achieve efficient heat dissipation. In terms of mobile signal repeater circuit design, Callboost adopts a high-efficiency circuit topology structure, such as Class D amplifiers, which can effectively reduce power loss and heat generation while ensuring output power. In addition, by selecting low-power components, unnecessary power consumption is further reduced and the overall heat generation of the device is lowered.
1. Wide bandgap semiconductor devices: reducing power consumption of core heat sources
Callboost uses gallium nitride (GaN) power amplifier modules, whose wide bandgap characteristics can significantly reduce switching losses and on resistance, reducing heat generation by more than 30% compared to traditional silicon-based devices. Combining multi-level filtering circuit optimization to further reduce ineffective power consumption and control heat generation from the source.
2. Dynamic intelligent temperature control system
The device is equipped with a built-in temperature sensor and adaptive algorithm to monitor the temperature of key components in real-time. When the risk of overheating is detected, the system automatically reduces the output power or starts the fan to assist in heat dissipation (optional), ensuring that the equipment operates within a safe temperature range. For example, in high-temperature environments, the ALC (Automatic Level Control) circuit can dynamically adjust the gain to avoid thermal runaway caused by overload.
3. Heat pipe+uniform temperature plate combination heat dissipation scheme
For high heat generating areas such as chips, Callboost uses ultra-thin heat pipes and temperature equalization plates to synergistically dissipate heat. The capillary structure inside the heat pipe quickly absorbs heat through liquid gas phase transition, while the isothermal plate achieves lateral diffusion of heat. The combination of the two can reduce the local hot spot temperature by 15-20 ℃, while controlling the thickness within 1.5mm, meeting the demand for lightweight equipment.
In order to ensure that the heat can be transferred quickly and evenly, Callboost adds thermal conductive gasket or thermal conductive gel and other materials with high thermal conductivity between the heating element and the cooling structure. These materials can fill the small gaps between the two, improve heat conduction efficiency, and ensure that heat can be quickly conducted to the shell or other heat dissipation structures, thereby achieving rapid heat dissipation.
The application of these advanced technologies enables Callboost mobile network repeater to maintain stable temperature even during high-power operation, ensuring the long-term reliable operation of mobile signal repeater.
Dual guarantee of quality and performance
Callboost always puts mobile signal repeater product quality and performance first, and strictly controls every aspect of the production process. From the procurement of raw materials to the delivery of finished products, every process undergoes strict inspection and testing to ensure that each callboost mobile network repeater equipment meets high-quality standards. For example, Callboost mobile network repeater undergo high and low temperature cycling tests (-40 ℃~85 ℃), salt spray corrosion tests, and continuous full load aging tests to ensure the stability of the cooling system in extreme environments.
At the same time, Callboost continues to invest in research and development resources, optimize product design and manufacturing processes to meet the market's demand for high-performance mobile signal repeaters.
In practical applications, Callboost mobile network repeater has demonstrated excellent performance. Its efficient heat dissipation design ensures that the good dissipation cell phone signal repeater can still operate stably under long-term high-power operation, without performance degradation or equipment damage caused by overheating. This not only improves the service life of the equipment, but also provides users with more reliable signal enhancement solutions to meet communication needs in different scenarios.
According to different deployment environments (such as high-temperature deserts and high humidity coastal areas), Callboost provides customized cooling solutions:
Industrial grade scenario: reinforced metal casing+active cooling fan to cope with sustained high loads;
Home/office scenario: fanless silent design, relying on passive heat dissipation and intelligent temperature control;
Vehicle mounted mobile scenario: anti vibration structure+wide temperature range components, adapted to bumps and temperature difference challenges.
Good dissipation cell phone signal repeater waterproof mobile network booster
Performance Enhancement with Callboost good dissipation cell phone signal repeater: How Heat Dissipation Optimization Empowers Signal Coverage Effect
1. Dual improvement in stability and coverage
Efficient heat dissipation enables the repeater to operate at full power for a long time (such as 19dBm output), avoiding signal attenuation caused by overheating and frequency reduction. Actual test data shows that Callboost devices can still maintain a 70dB gain and * * ≤ 3dB noise figure * * in high temperature environments, with a coverage radius 20% larger than similar products.
2. Extend the service life of equipment
By controlling the temperature of core components (such as RF chips ≤ 85 ℃), the average time between failures (MTBF) of Callboost repeaters can reach over 100000 hours, significantly reducing long-term operation and maintenance costs for users.
Callboost has successfully solved the problem of heat dissipation for small-sized devices in the design of mobile signal repeaters by carefully selecting shell materials, optimizing internal electronic components, and applying advanced heat dissipation technology. Its products not only perform outstandingly in terms of performance, but also win the trust of users in terms of quality and reliability. Choosing Callboost means choosing a mobile signal repeater that can operate stably and dissipate heat efficiently in various environments, providing solid support for your communication needs.
Q & A
Q : Why are there still so many mobile signal repeater with plastic casings?
A : In order to save costs, there is no way. Plastic shells are not only cheap, but also require machining for screw holes unlike aluminum alloy shells. When the power is very low, the heat generated by the amplifier tube is relatively small, so many plastic shell hosts dissipate heat through the circuit board. However, in hot weather, relying on the circuit board for heat dissipation is not enough.
Q : Why do I still feel that the temperature of the equipment is very high when using a metal enclosed mobile signal repeater?
A : On the one hand, it is necessary to check whether the mobile signal repeater has the same heat dissipation technology and solution as mentioned above. On the other hand, there may be deviations between the perceived temperature and the actual temperature of the mobile signal repeater, and it is essential for the equipment to generate heat during operation. As a signal repeater manufacturer, Callboost good dissipation cell phone signal repeater has undergone strict testing and the heat generated is within the range that the repeater can withstand. When combined with other heat dissipation methods, please feel free to use Callboost mobile network repeater with confidence.
