In today's digital age, cell phone have become an important tool for solving signal coverage problems. However, for customers, how to ensure the performance and reliability of equipment while pursuing small size and high power is a problem that requires in-depth exploration. As a professional manufacturer of mobile signal amplifiers, Callboost, mobile phone signal manufacturer is committed to providing customers with high-quality, cost-effective products and professional signal solutions.
For many customers, they want small size signal booster and good effect of signal coverage. How to ensure the performance and reliability of equipment while pursuing small size and high power? Is this possible?
With the development of technology, customers' demands for mobile signal amplifiers are becoming increasingly diverse. On the one hand, small sized signal boosters are easy to install and hide, especially in environments such as homes and small offices, where aesthetics become an important consideration factor. However, small size signal booster often means limited internal space, which can have a certain impact on the performance of the small sized signal booster. For example, high-power cell phone signal booster require larger heat dissipation space to ensure stable operation, while small-sized signal boosters may face challenges in heat dissipation design, which can affect long-term performance.
Small sized signal booster recommendation - cellphone signal booster for home / cellular signal repeater for office etc....

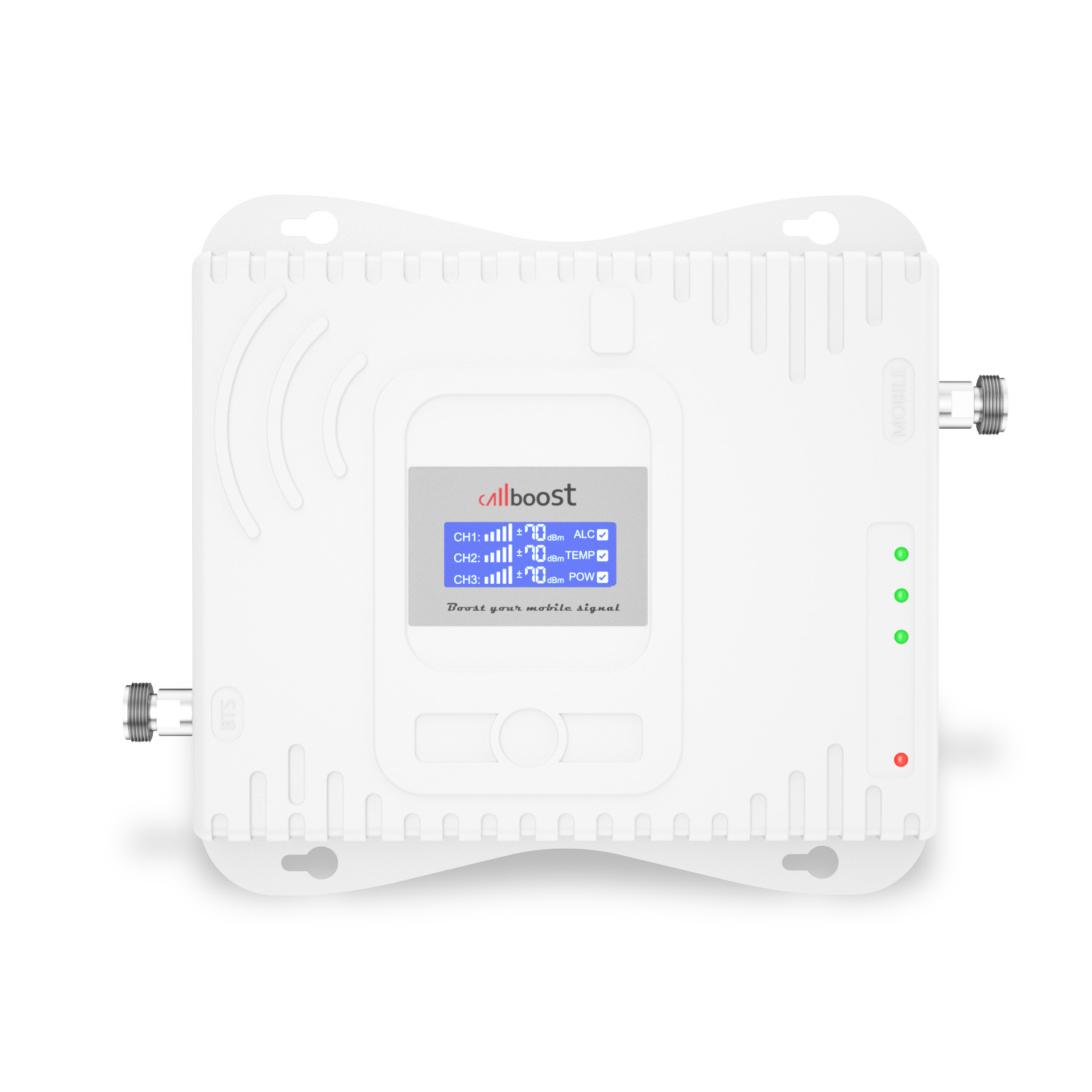

Small sized signal booster - CB70W Dual Band

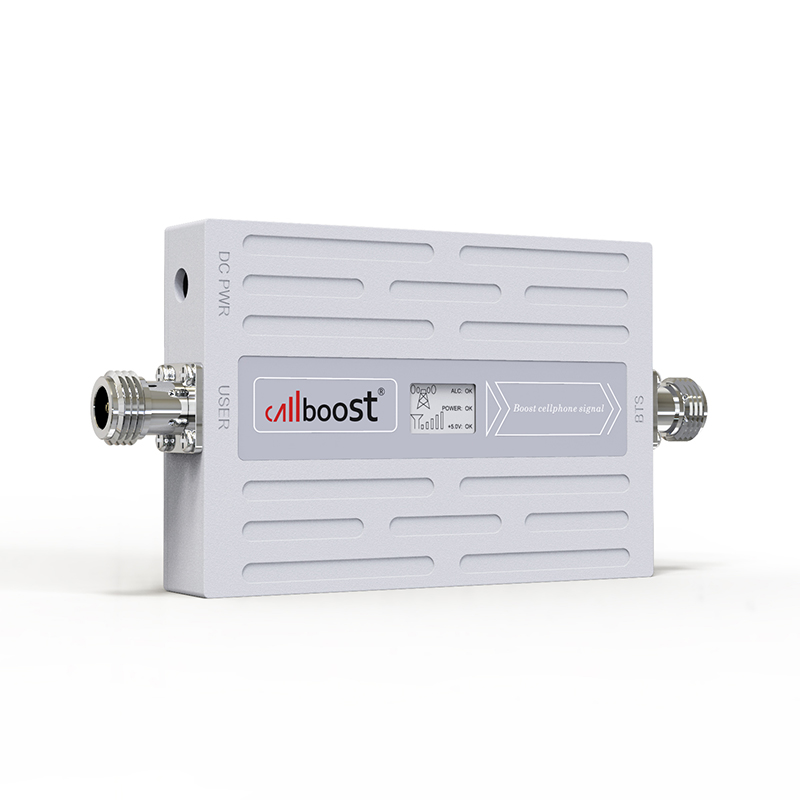

Small sized signal booster - CB70W Triband

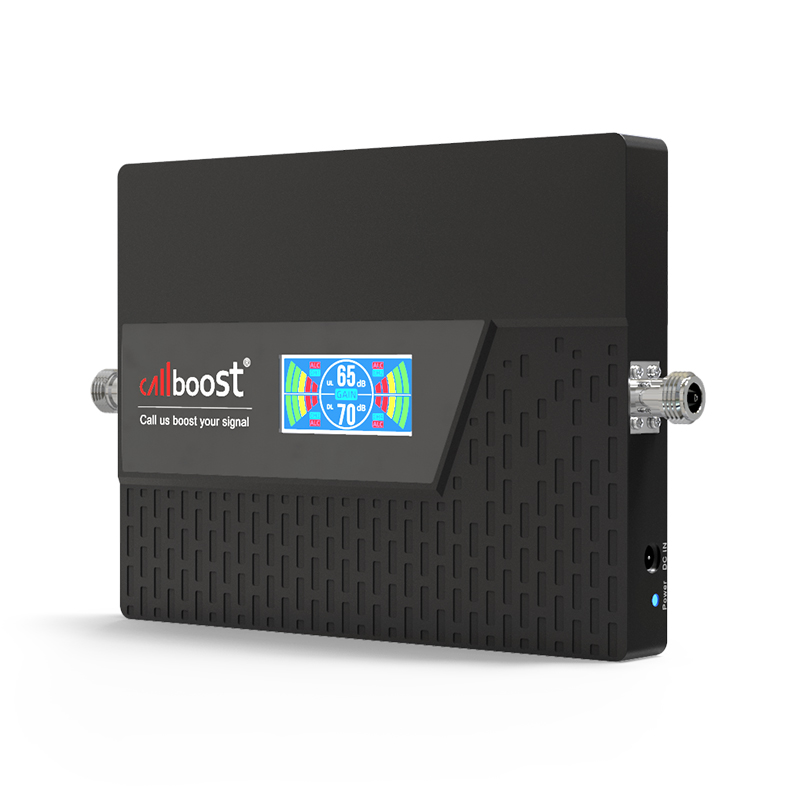

Small sized signal booster - CB70B Quad Band

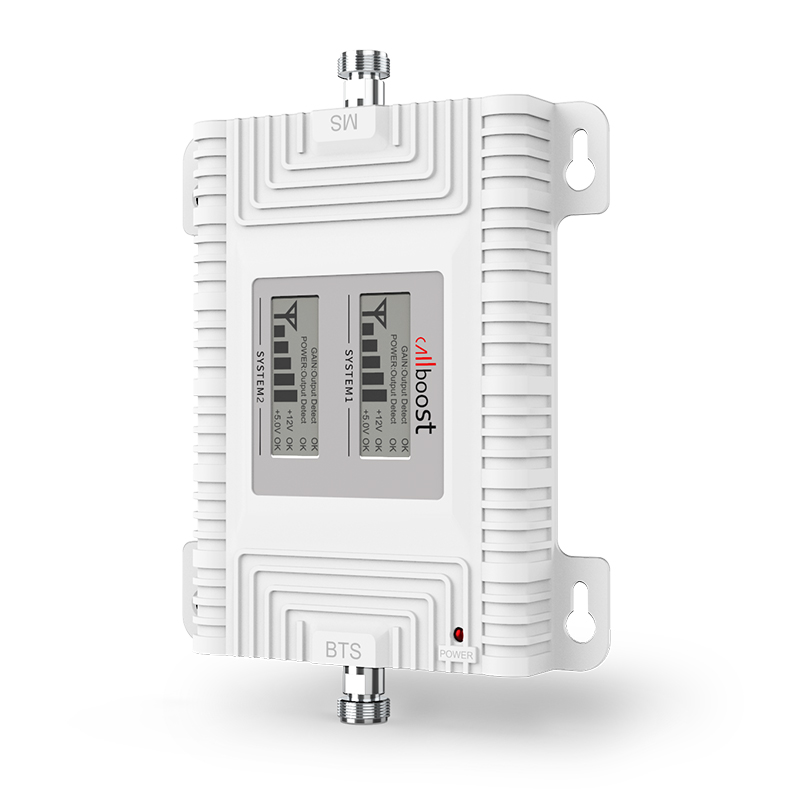

Small size signal boosters which cover 100-300 SQM
On the other hand, high-power cell phone signal booster can cover larger areas and meet the needs of large commercial spaces, outdoor areas, and other places. However, high-power devices are usually bulky, which to some extent limits their installation flexibility. In addition, excessive power output may cause interference to the base station, so it is necessary to plan the power design reasonably to ensure that the equipment operates efficiently under the premise of legal compliance.

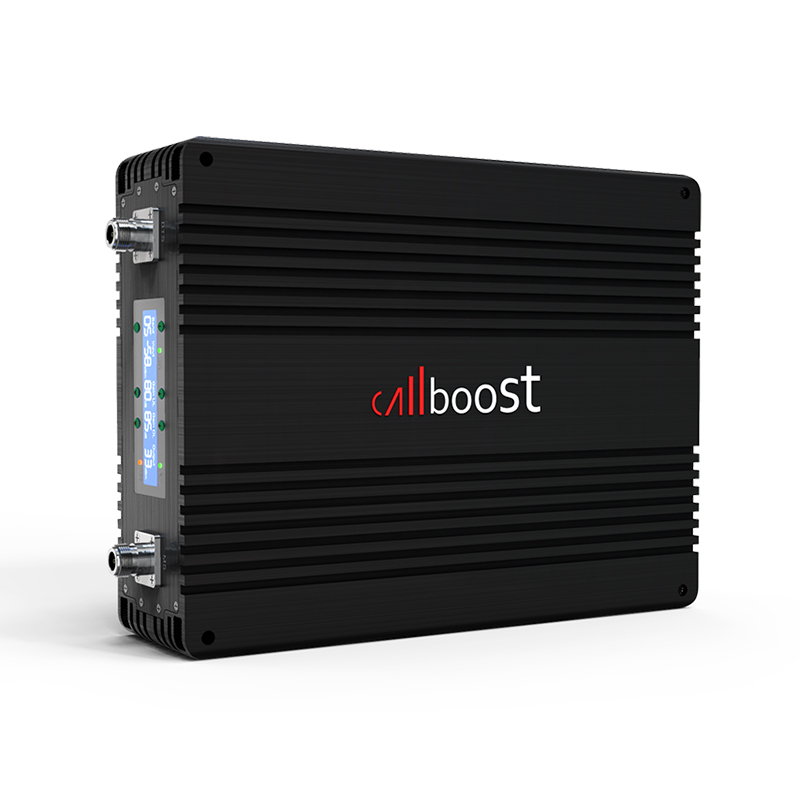

1000SQM middle sized signal booster

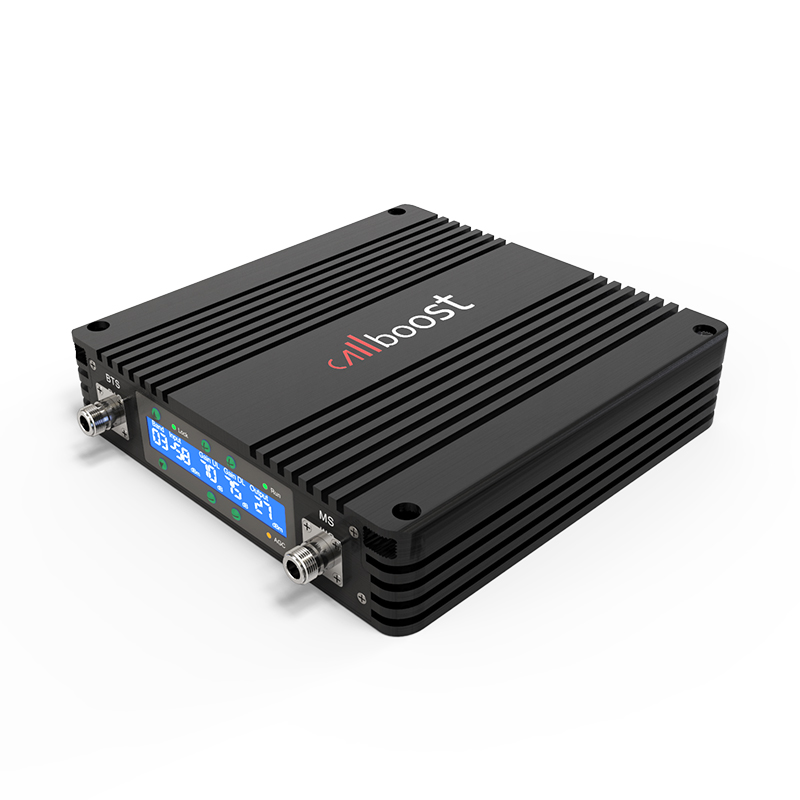

3000SQM middle sized signal booster
Mobile network booster for rural 10000SQM

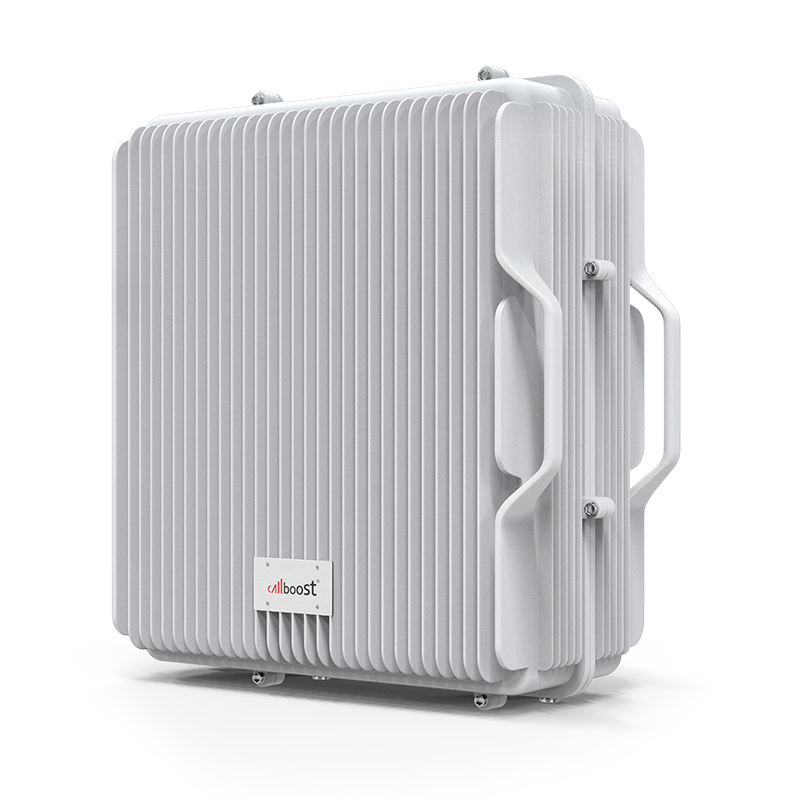

20000SQM big sized rural cell phone repeater
Middle / Big sized signal boosters which cover 500-20000 SQM

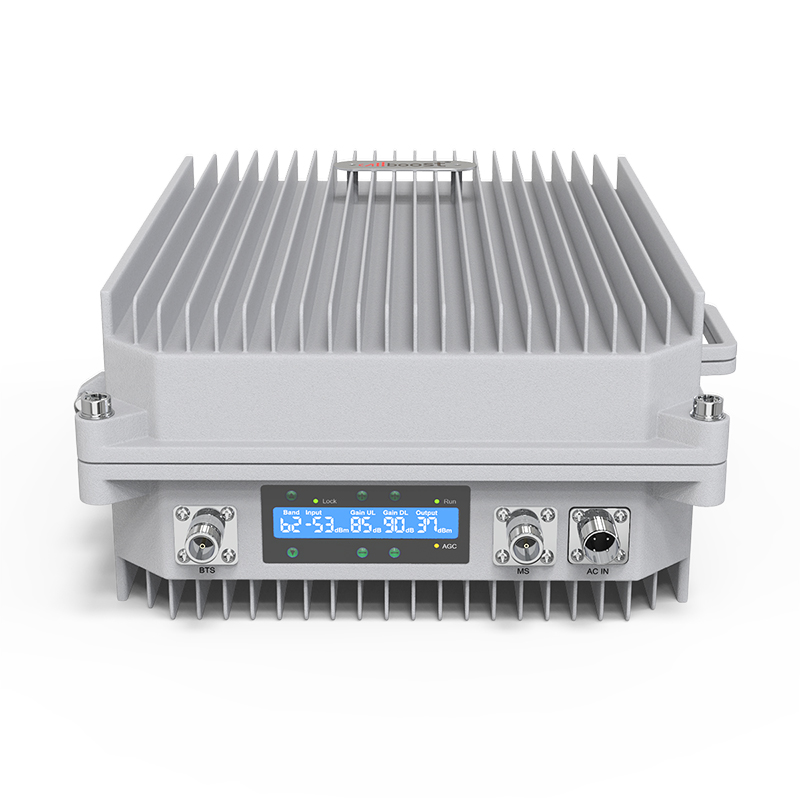

Waterproof Mobile Network Booster
In summary, size of mobile signal repeater needs to be repeatedly measured in the design process of high power cell phone signal booster to meet the requirements of various components such as usage space, heat dissipation, circuit layout, etc.
Why is it difficult to miniaturize high-power cell phone signal booster
—— Size Of Mobile Signal Repeater technical limitations and their impact on coverage effectiveness
There is a natural technological contradiction between the high power and miniaturization of mobile signal amplifiers (repeaters). Many customers hope that the high poer cell phone signal booster is compact and easy to install, but at the same time require it to have high gain (such as 75dB or more) or high power ( over 23dbm ) and wide coverage capability. However, the laws of physics and engineering technology determine that high-power devices cannot infinitely compress cellular high power cell phone signal booster 's size. The following analysis will be conducted from two aspects: technical principles and practical impacts.
The core reason why high-power cell phone signal booster are difficult to miniaturize;
The impact of size compression on the performance and coverage effect of the cell phone signal booster;
1. The core reason why high-power cell phone signal booster are different to miniaturize
1. Limited heat dissipation capacity: physical contradiction between power and volume
High power cell phone signal booster generate a large amount of heat during operation. According to Joule's law, the higher the power, the more square the heat generated. If the device is too small in size, the heat dissipation surface area is insufficient, and the heat cannot be discharged in a timely manner, it will lead to the following problems:
Overheating of components: High temperatures may cause a decrease in the performance of core components such as RF chips and power amplifier modules (such as gain attenuation and increased noise figure), and even lead to direct burnout;
Poor thermal stability: Temperature fluctuations may cause signal drift, resulting in fluctuating signal strength in the coverage area.
For example, A 95dB gain 43dbm high power with a power of 20W generates heat equivalent to that of a small electric heater. If forcibly compressed to the size of a palm, it is almost impossible to operate stably solely through natural heat dissipation.
2. Hard constraints on antenna size and performance
The gain and frequency coverage capability of an antenna for cell phone signal booster are directly related to its physical size (following the "gain volume" relationship in antenna theory). For example:
Low frequency band (such as 700MHz) antenna: with a longer wavelength (about 42cm), the antenna size needs to reach 1/4 of the wavelength (about 10cm) to ensure basic efficiency;
High frequency band (such as 3.5GHz) antenna: The size can be reduced, but the gain will decrease and the coverage area will be reduced.
If the overall size of the device is too small, the antenna must be miniaturized, which will result in:
Difficulty in supporting multiple frequency bands: It is difficult to cover the full frequency bands of operators (such as 2G/4G/5G frequency bands of China Mobile/China Unicom/China Telecom);
Decreased signal reception sensitivity: Small antennas are difficult to effectively capture signals in weak signal scenarios, resulting in greatly reduced amplification effects.
3. Circuit design and electromagnetic compatibility (EMC) challenges
High power cell phone signal booster require complex RF circuit design, including multi-stage filtering, impedance matching, isolation and protection modules. Miniaturization will bring the following problems:
Crowded circuit layout: Component spacing too close can easily cause electromagnetic interference (EMI), leading to increased signal noise;
Insufficient power capacity: High power cell phone signal booster requires high current supply, and small-sized cell phone signal booster are difficult to integrate power modules with sufficient capacity;
Reduced shielding effectiveness: Under a compact structure, the isolation of input/output terminals decreases, which may cause self-excited oscillation (equipment spontaneously generates interference signals).
2. The influence of size compression on the performance and coverage effect of repeater
1. Reduced coverage
Decreased antenna gain: Small antennas are difficult to achieve high gain (such as 10dBi or more), resulting in a shortened signal radiation distance;
Increased multipath effect: The antenna directionality of small-sized devices deteriorates, and signals are easily reflected by obstacles, forming blind spots.
2. Deterioration of signal quality
Increased noise factor (NF): Insufficient heat dissipation leads to an increase in internal noise in the amplifier, resulting in a decrease in signal-to-noise ratio (SNR), manifested as call lag and reduced network speed;
Intermodulation distortion (IMD): Circuit congestion may cause nonlinear distortion, generate interference harmonics, and affect the signal purity of adjacent frequency bands.
3. Decreased equipment reliability
Shortened lifespan: Long term high-temperature operation will accelerate the aging of components such as electrolytic capacitors and RF chips;
Increased failure rate: Poor heat dissipation may lead to frequent triggering of over temperature protection and even direct shutdown of the equipment.
Summary with choosing (high power) cell phone signal booster
When choosing a (high power)cell phone signal booster, customers need to consider factors such as size of mobile signal repeater, power, material, and waterproof performance comprehensively to meet the signal coverage requirements in different scenarios. Callboost, as a professional manufacturer with high power cell phone signal booster, offers a variety of models and specifications of products to meet the needs of different customers. For example, for homes and small offices, we offer compact, low-power cell phone signal booster to ensure easy installation without compromising aesthetics; For large commercial spaces and outdoor areas, we provide high-power cell phone signal booster, waterproof mobile network booster to ensure wide and stable signal coverage.
In addition, Callboost also provides professional signal solutions and (high power)cell phone signal booster, customizing the most suitable signal amplification scheme according to the actual needs and site characteristics of customers. Our R&D team has rich experience and professional skills, which can provide customers with one-stop services from cell phone signal booster product selection to installation and debugging, ensuring that customers obtain the best signal coverage effect.
While pursuing small size and high power cell phone signal booster, we always pay attention to the performance and reliability of cell phone signal booster, ensuring that customers can enjoy stable and efficient signal enhancement services during use. Choosing Callboost is not only about choosing a high-quality mobile signal amplifier, but also about choosing a professional signal solution partner.
The trade-off between size of mobile signal repeater and performance needs to be based on the cell phone signal booster of the scenario
Industrial grade scenarios (such as warehouses and mines): prioritize selecting standard size of mobile signal repeater with waterproof to ensure high power and stability;
Civilian scenarios (such as homes and small offices): Acceptable moderate power compromise, choose compact equipment;
Special scenarios (such as in vehicle and temporary deployment): Adopting modular design, compensating for insufficient single point coverage through multi device networking.
As a professional cell phone signal booster manufacturer, we always recommend customers to choose (high power) cell phone signal booster based on actual scenarios, rather than blindly pursuing the ultimate parameters of "small size signal booster +high power cell phone signal booster". Through scientific signal testing and scheme design, the optimal solution can be found between signal coverage effect, cell phone signal booster lifespan, and cost.
